Simple operation, superior wheel protection



Hunter Center-Clamp Tyre Changers

/

Tire Changer

Center-Clamp Tire Changers

Simple operation, superior wheel protection

Hunter offers four models of center-clamp tire changers for any need.  From the popular three button leverless Auto34 to more basic models, damage free operation is attainable for all budgets.

Features at-a-glance

  • Leverless and traditional options
  • Center-shaft clamping
  • Cam plate tightens under torque
  • Adjustable height mounting

Specifications at-a-glance

  • 860 ft-lbs.
    Torque
  • 0-14+ rpm
    Variable Speed
  • 26 & 34 in.
    Max Rim Diameters
  • 19 in.
    Max Rim Width





Product family at-a-glance

Auto34R

Three button operation
  • 10-34 in. Capability
  • Leverless polymer head
  • Telescoping chassis sets diameter
  • High-volume blast tank
  • Dual roller arms
  • Automatic indention
  • Standard press arm
  • Standard wheel lift

TC39 & TC37

Compact & capable
  • 10-26 in. Capability
  • Leverless polymer head (TC39)
  • Standard polymer head (TC37)
  • Dual roller arms
  • Manual indention
  • Standard press arm
  • Optional wheel lift and side shovel

TC33

Conventional Center-Clamping
  • 10-26 in. Capability
  • Floating 3-point arm
  • Standard polymer head
  • PowerOut™ bead loosener
  • Built-in blast inflation
  • Optional plus device
  • Optional press arm
  • Optional wheel lift

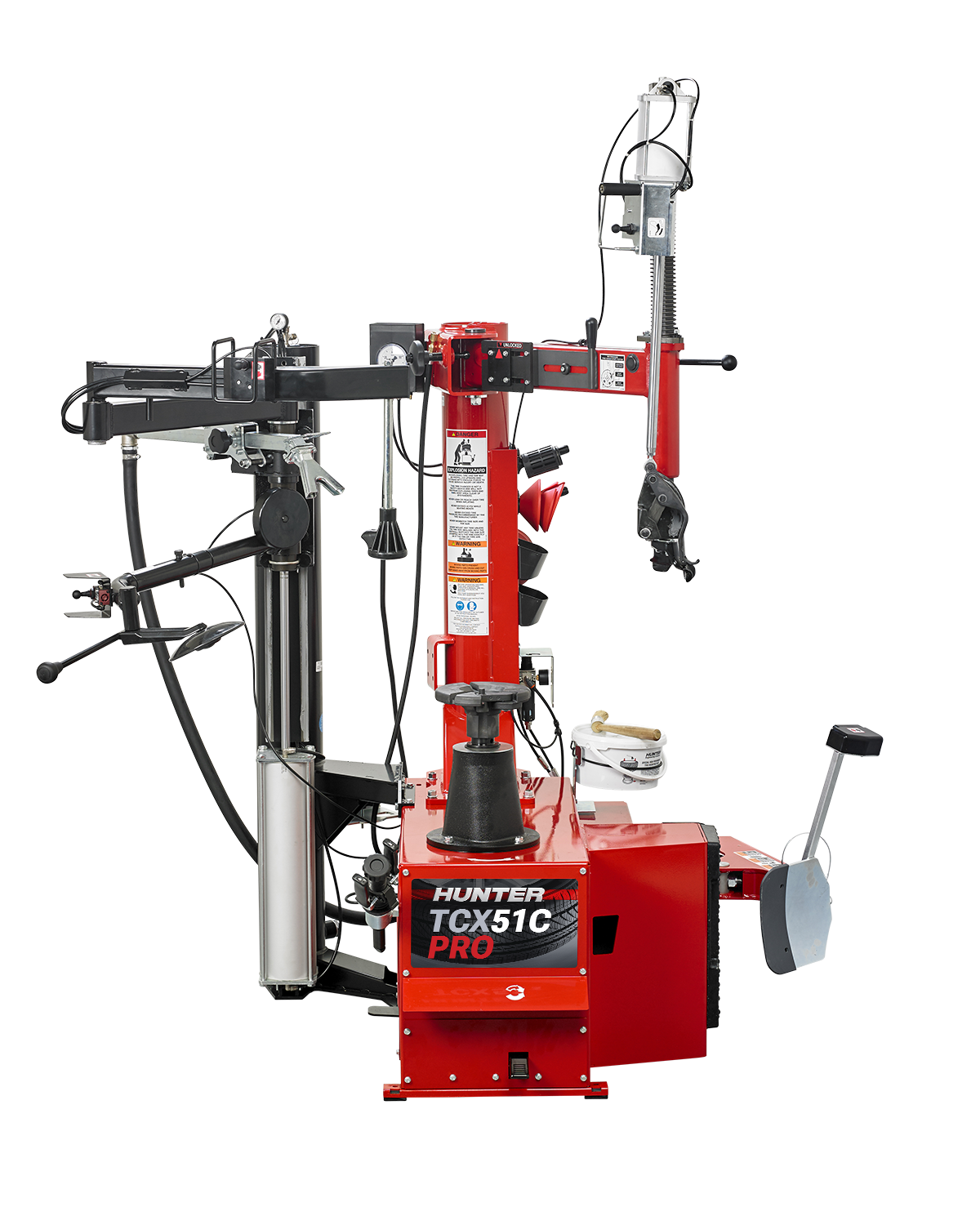

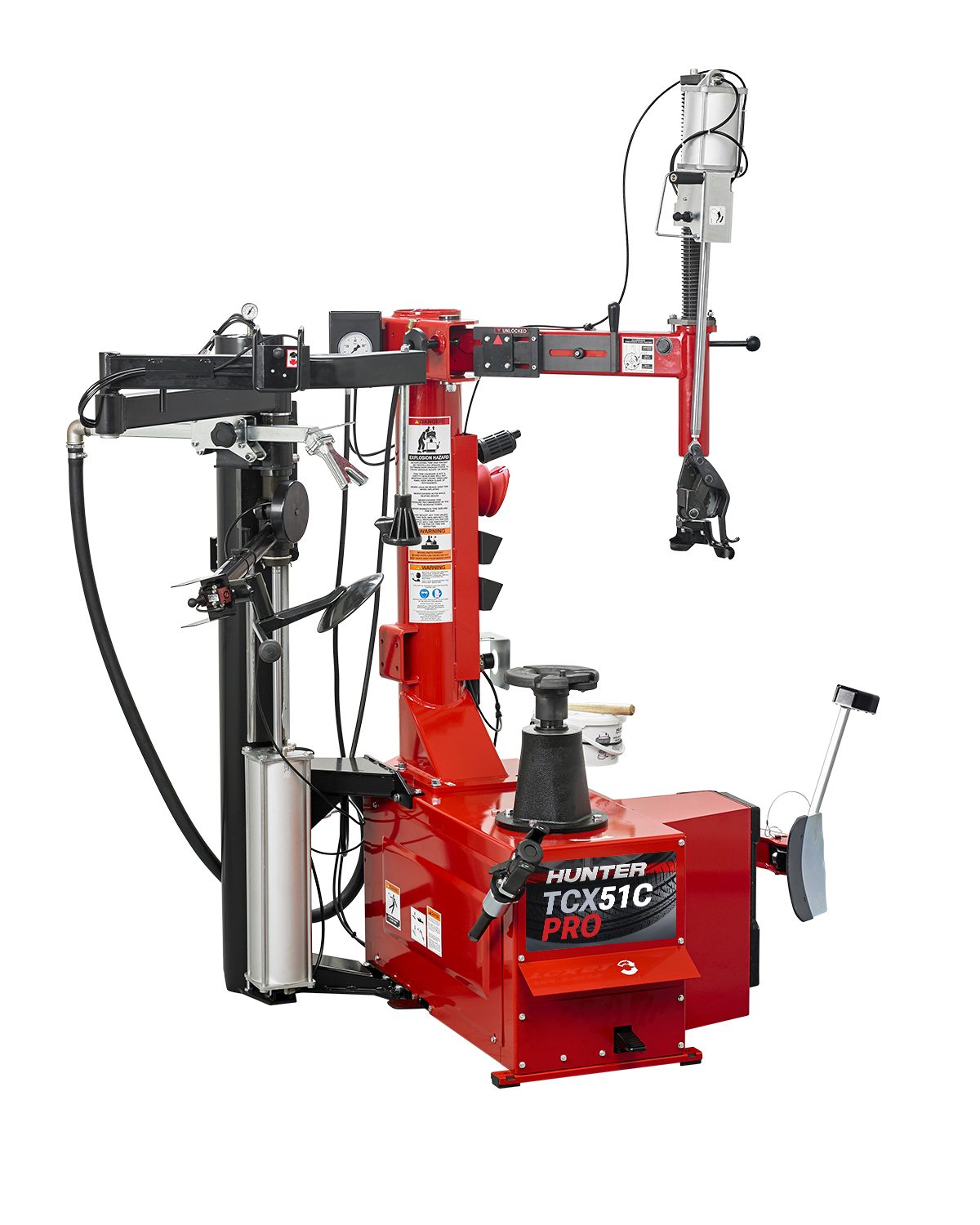

TCX51C

Powerful hybrid design
  • 10-30 in. Capability
  • Manual swing arm
  • Standard polymer head
  • Bead press system with locking lower demounting disk
  • FastBlast™ inflation system
  • Heavyweight, rigid chassis
  • PowerOut™ bead breaker shovel
  • 220V 2-Speed Power
  • Optional wheel lift









Did you know?

73% of assemblies today are considered difficult-to-service

Low-profile, run-flat, large diameter and heavy assemblies require skilled technicians when using conventional tire changers.



Being equipped with the most advanced, technology on the market today allows the equipment, instead of the technician, to eliminate fitment challenges.



Read more...





Give your technicians a break


Consistent service times, fewer technician decisions and autonomous WalkAway™ mode makes tire service on the Hunter Revolution™ simpler than ever.

Revolutionize your business





Auto34R Exclusive Features


Precise Diameter Control

Electric telescoping chassis is smooth and responsive.

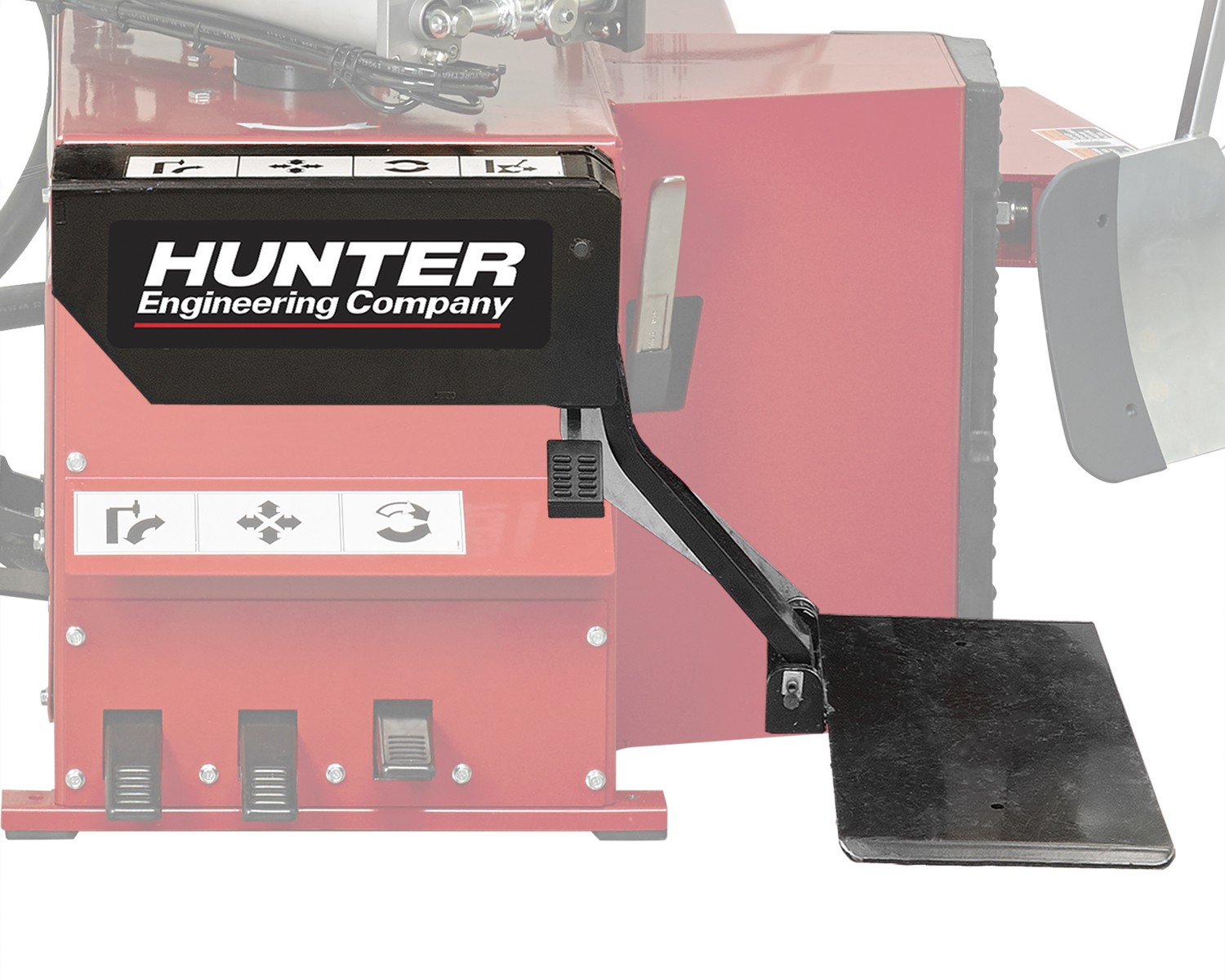

Simple controls

Auto34R features three button operation


Automatic Indention

Simplifies and speeds bead loosening


Memory Function

Quickly returns toolhead to preset location


High-volume blast tank

Slim profile and large capacity to seat truck and SUV tires


Small footprint

Improved features save valuable floor space





Make wheel servicing safer and easier

Leverless polymer toolhead

Auto34R & TC39

  • No scratch polymer head functions as its own lever
  • Head is wide and thin for very low mounting stress
  • Head does not ride on the wheel face for scratch free operation

Conventional mounthead

TC37 & TC33

  • Durable polymer head for use with traditional levers.
  • Prevents wheel damage and follows the rim edge, no diameter adjusting needed.
  • Locks in vertically for clad wheel protection (TC37 only)

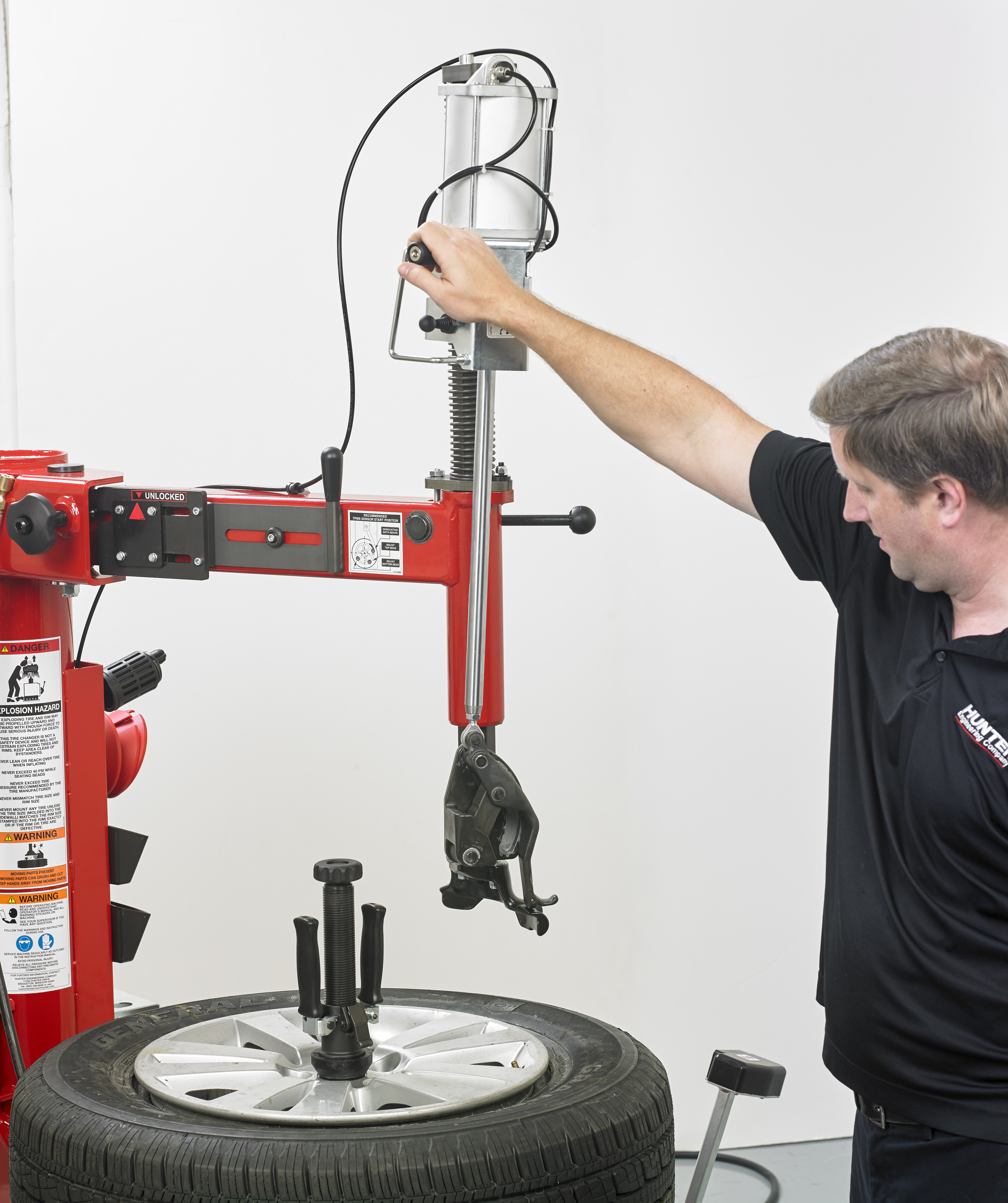

Powerful press arm

Auto34R, TC39 & TC37, optional on TC33

  • Assists mounting toughest tires
  • Demounting assistance for runflats

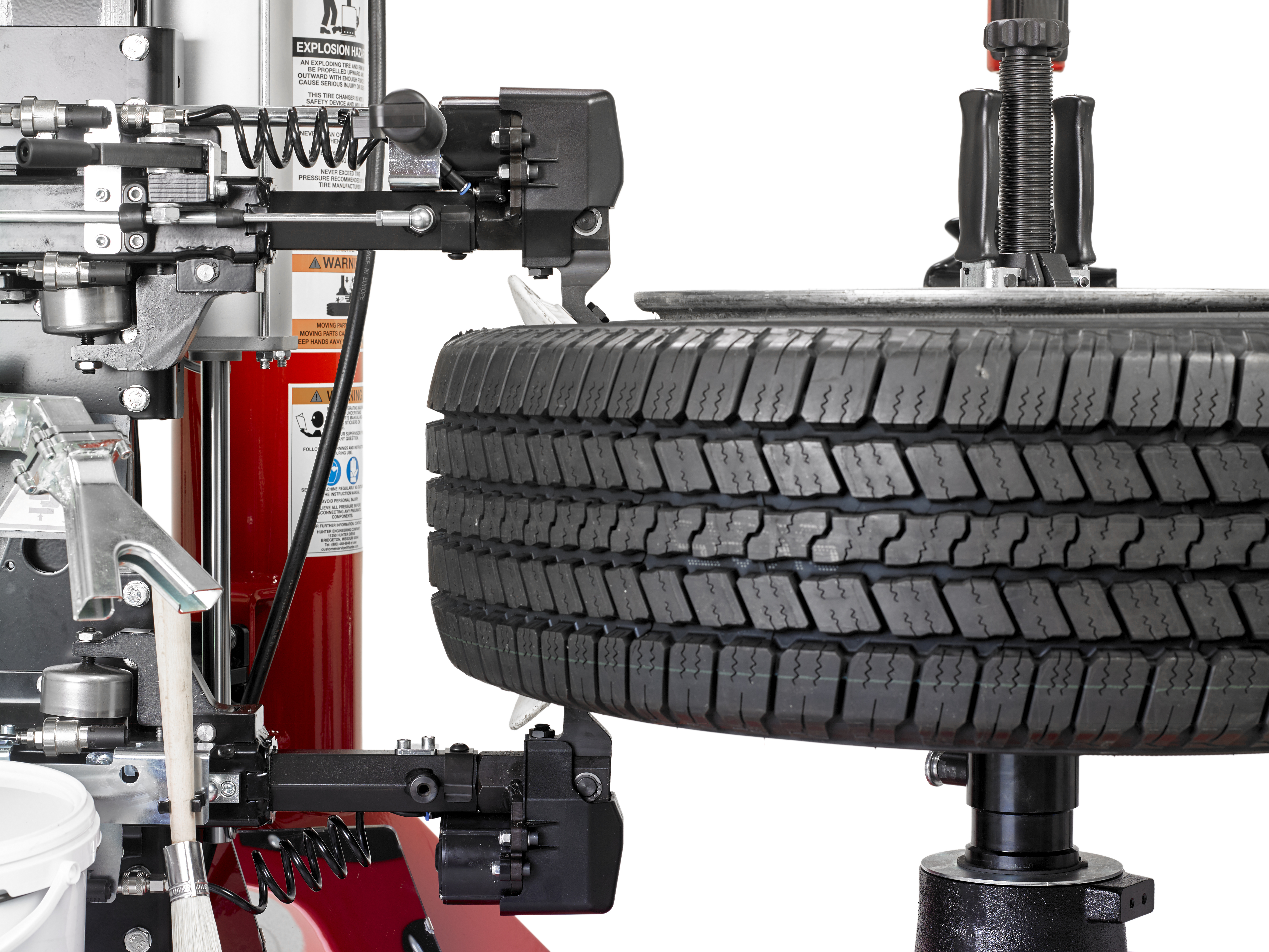

Dual bead rollers

Auto34R, TC39, TC37

  • Easy bead loosening
  • Lower roller demount bottom bead, making heavy tires managable
  • Dual rollers essential for match mounting and bead massage

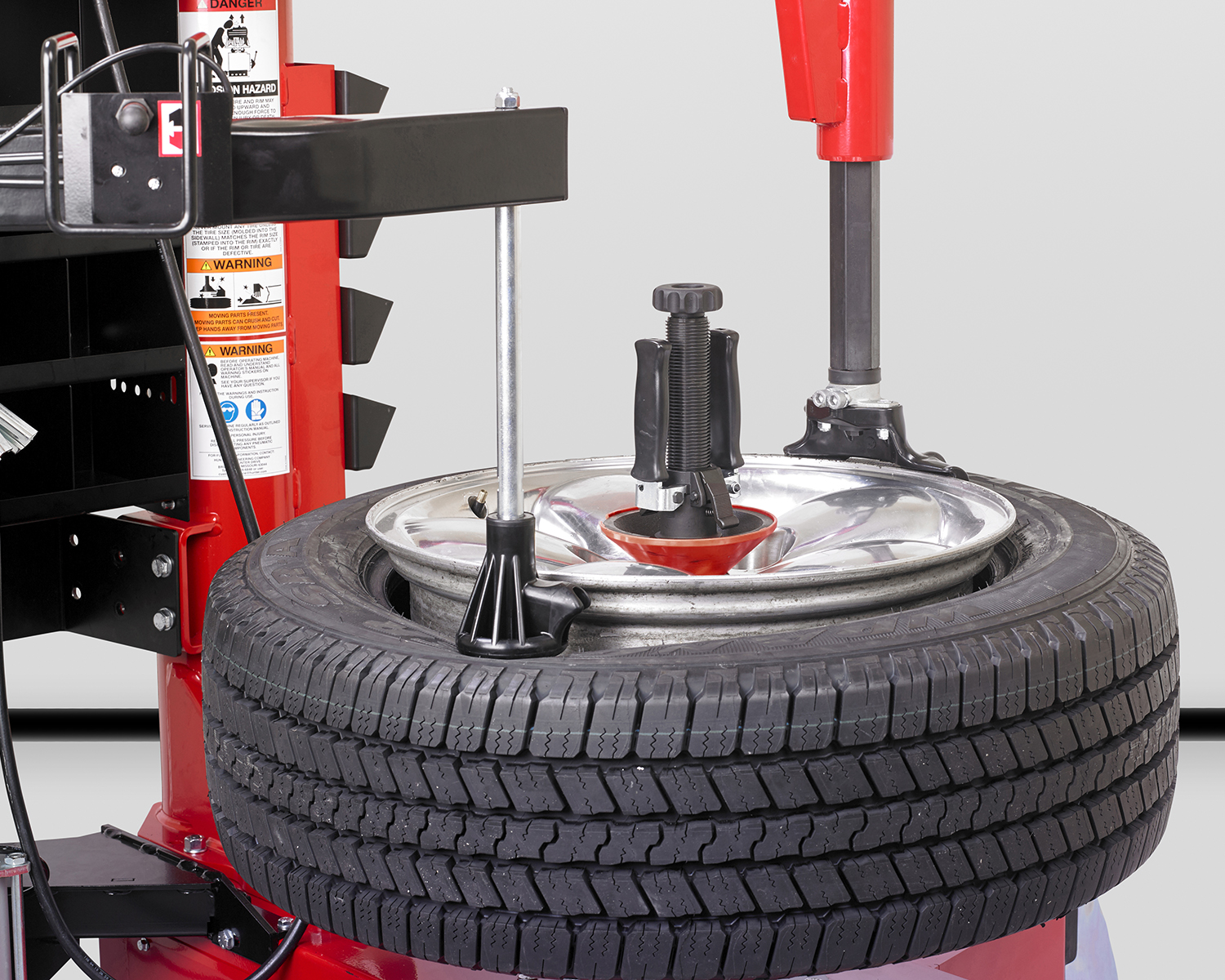

Plus device

TC33

  • Assists with a broad range of tires from passenger cars to medium-duty trucks
  • Aids in lubricating, lifting and guiding the tire into the drop-center
  • Adjustable roller angle





Secure wheels with no damage

Center-clamp

  • Grip from the strongest part of the rim
  • No teeth to damage rim

Cam plate

  • Tightens just as much as needed to grip wheel
  • Three adjustment heights adapt to all wheel types

Flange plates (optional)

  • Two options for clad wheels and reverse wheels needing extra protection





Protect your customers' wheels today!







Ease-of-use features for technicians

Wheel lift (Auto34R)

Standard on Auto34R

Pick and place lift makes lifting and clamping heavy assemblies easy

Wheel lift (TC models)

Optional on TC39, TC37 & TC33

Simplifies lifting heavy assemblies. Safe and away from work area.

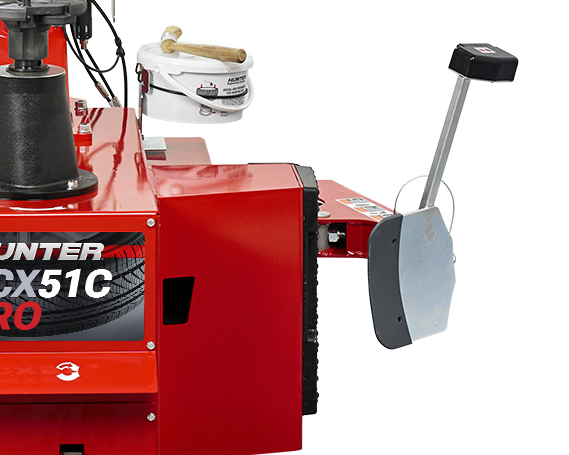

PowerOut side shovel

Optional on TC37 & TC39, standard on TC33

Break beads effortlessly to make tire service easier.

Blast inflation

Handheld air blast nozzle directs burst where needed to seal beads.





Additional features

Variable speed

  • 0-14+ rpm forward speed is infinitely variable
  • Slow speed for reverse

Powerful drive

860+ ft-lbs of torque won't stall on tough assemblies





Did you know?

Bead massage reduces wheel vibrations

Bead massage reduces road force vibration by an average of seven pounds.   Some assemblies can see road force reductions well over 20 pounds!



To bead massage you need a dual bead roller center-clamp tire changer.  While still clamped, inflate the tire to OEM recommended pressure and refit the core.  One at a time, bring the bead roller against the sidewall of the tire at the rim edge and press approximately 1/4 inch into the tire.  Rotate two or three revolutions for each bead.



Bead massage takes less than a minute, but can significantly reduce road force, a leading cause of vibration.
