Quickly and easily secure the target to the wheel through magnetic pins adhering to the lug nuts, minimizing wheel damage risk.
Alignment System
Hunter HawkEye® XL
Fast and highly-capable alignment machine featuring Hunter's patented camera technology designed for heavy-duty semi truck and bus, medium-duty utility and fleet, and light-duty passenger vehicles.
HawkEye® XL
/
HawkEye® XL features
Three-dimensional XL targets are durable, low maintenance, and non-electronic
High-definition cameras are accurate, precise, and offer extra-long-range sight
Capture all measurements in a single rolling compensation
See live alignment readings from three axles at once
Perform wheel alignments on any surface, in any bay
Fully Integrated Alignment rack integration streamlines processes
HunterNet® 2 connectivity to see and manage your performance
Always adapting to the needs of trucks and fleet vehicles
New features and additions to HawkEye® XL keep your shop fully-capable of servicing heavy-duty, medium-duty and light-duty vehicles.
Magnetic wheel adaptors
Additional sensor configurations
Choose from the already-available movable cabinet-mount or the new fixed-column or drive-through sensors.
Secondary console and storage cart
Power through the day with cordless freedom, easy access storage, and enhanced visibility.
WinAlign 18.3 software
Packed with new features including target extension placement guidance, aligner placement for cabinet-mounted systems, and frame reference alignment procedures.
Hunter's industry-standard vision technology built for commercial vehicles
Alignments in any bay
Move the aligner for use in any bay, on the floor or a lift, with adjustable camera beam.

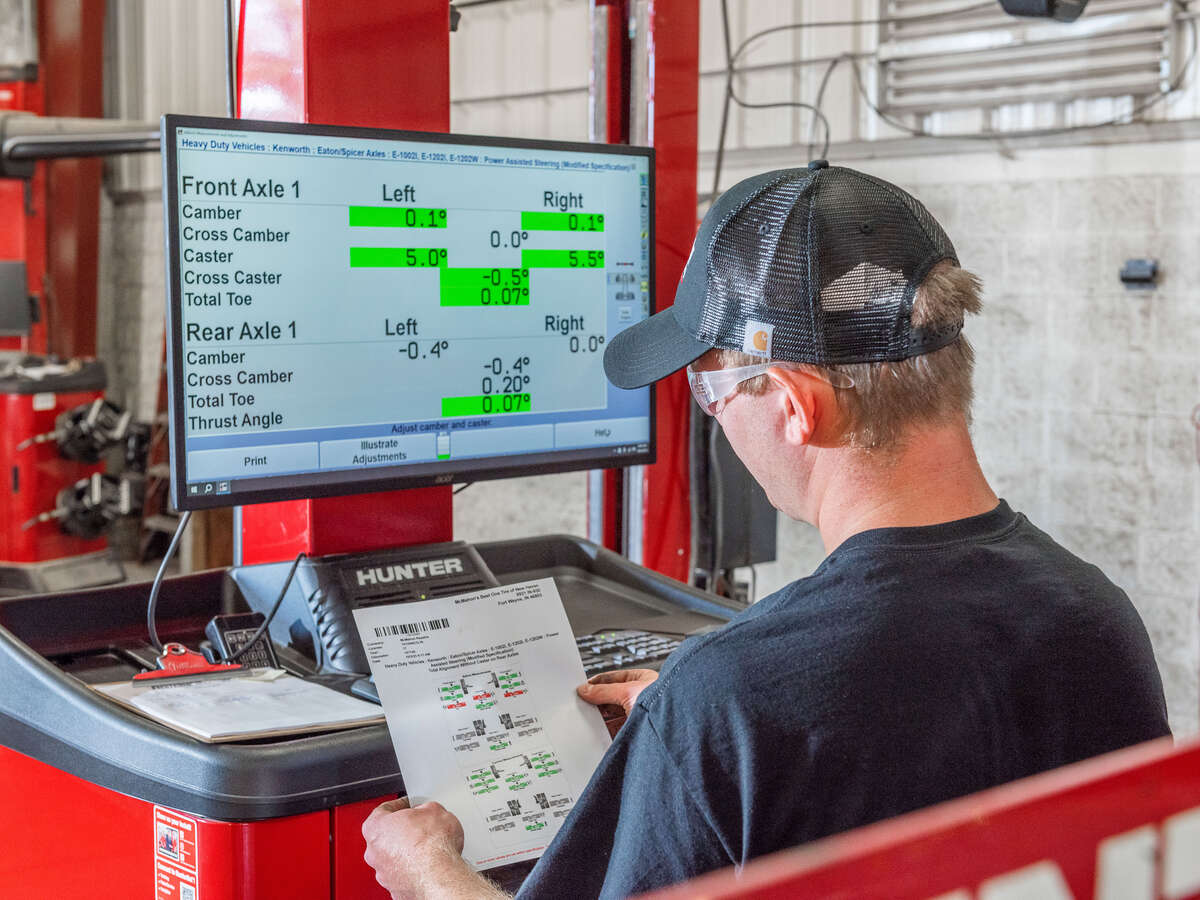

Multi-Axle Readings
See live alignment readings from three axles at one time with guided procedures.

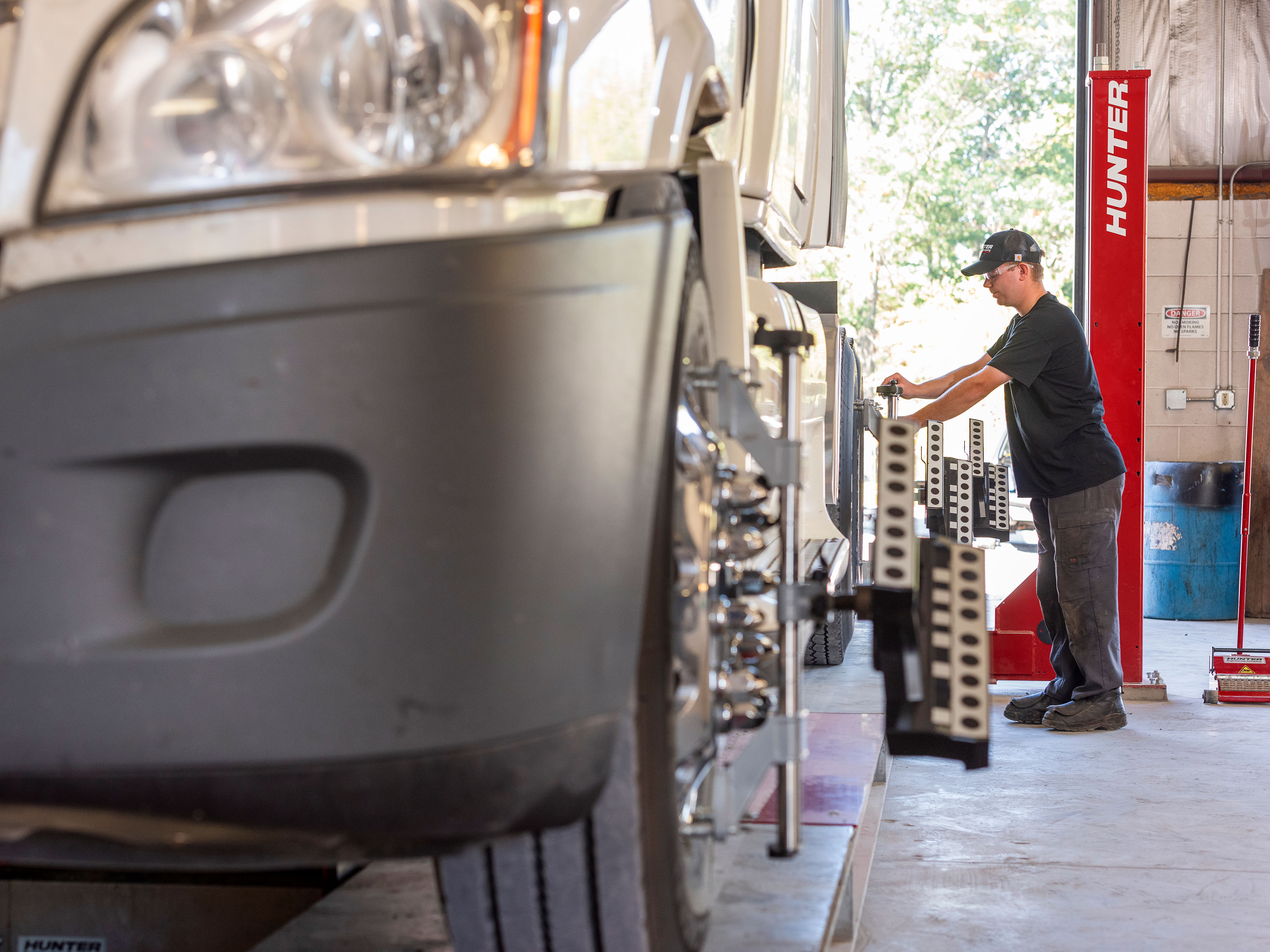

XL Targets
Hunter's patented 3D targets offer extreme durability, low maintenance, and no electronics at the wheel.
Trailer alignment
Long-range cameras easily see targets on 53-foot trailers. Align using optional kingpin adaptor.

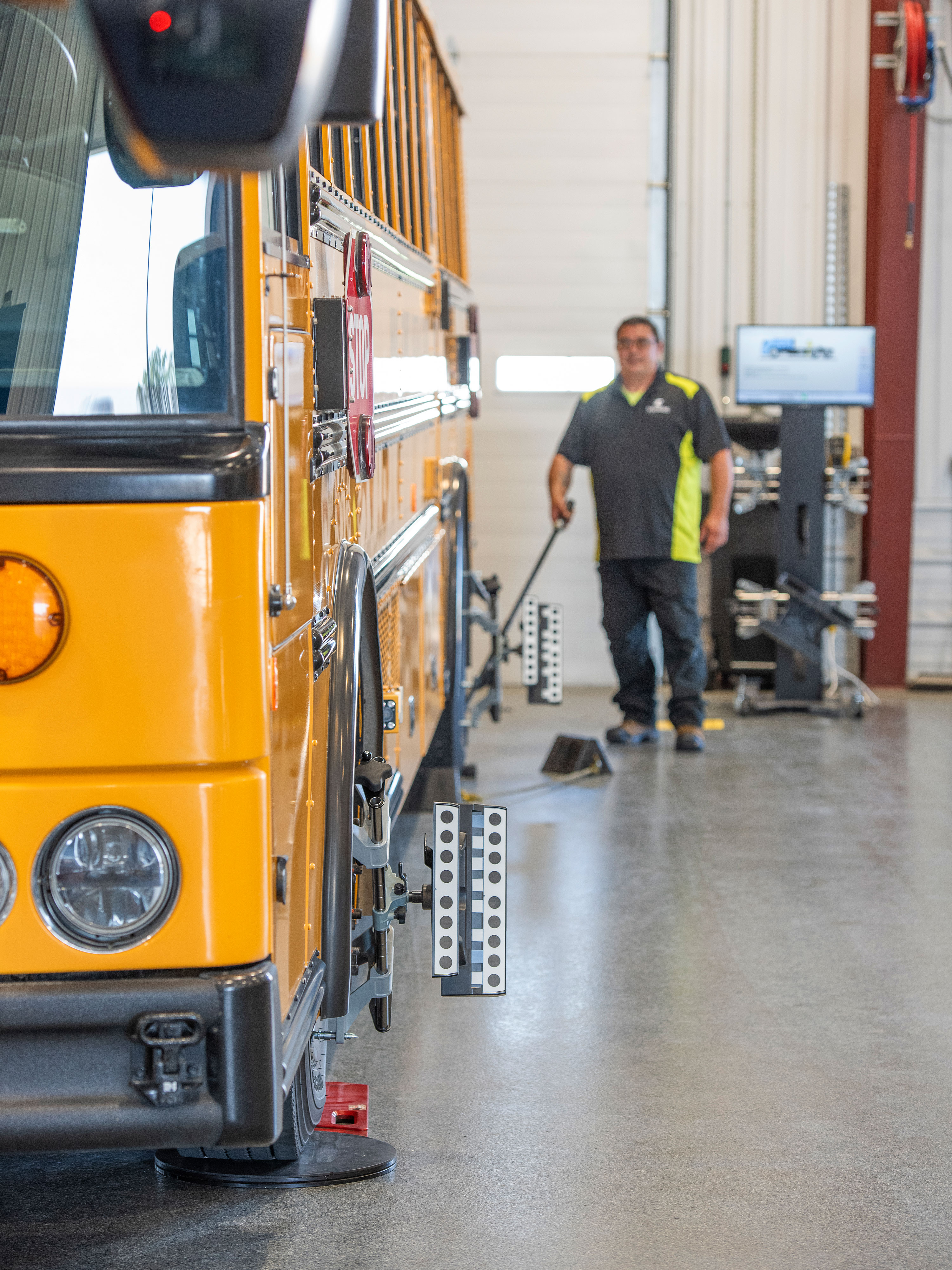

Truck Pusher
Optional
Effortlessly move vehicle for rolling comp with rechargeable battery-powered pusher.
High-definition cameras
Extra-long range, high-resolution cameras precisely monitor each wheel in a 3D space to provide pinpoint-accurate measurements.
New at SEMA 2025: HawkEye® XL Updates
See the latest enhancements introduced at SEMA.
HawkEye® XL helps Prime Inc. maintain its “nonstop” pace
The new HawkEye® XL commercial aligner was designed for shops like Prime Inc. in mind.
HawkEye® XL Aligner Passenger QuickGrip® Adaptor Demonstration
HawkEye XL® Alignment System: Beginner's Operation Guide
Field training manager Miles Dierker describes the proper techniques for the smoothest and most efficient operation of the Hawkeye XL®, powered by WinAlign® software.
Fast and highly-capable HawkEye® XL heavy-duty alignment machine
The all-new HawkEye® XL alignment system from Hunter Engineering® features three-dimensional XL targets, high-definition cameras, and three-axle live alignment readings from a single rolling compensation on any surface or any bay.
Designed & Built in the USA
See how Prime Inc. uses HawkEye® XL to align heavy-duty trucks faster, smarter, and with less downtime.
Big or small, align them all with HawkEye® XL
Hunter Engineering’s new Hawkeye® XL aligner handles everything from Class 8 trucks down to passenger vehicles.
Heavy-duty big rigs
Align multi-axle class 8 tractors, trucks and buses.
Trailer
Align trailers up to 53 feet using the optional kingpin adaptor or new back-in procedure.
Medium-Duty
Align box trucks, utility trucks, fleet vehicles, last-mile deliver vans, and more.
Light-Duty
Align passenger cars and trucks.
Ready for whatever comes through your door
Align a wide range of commercial vehicles from semi-truck tractors, trailers, big rigs, buses, box trucks, and even passenger vehicles.
XL targets for XL alignments.
Always ready
No batteries, cables or wireless signal connection are required.
Wheel adaptor options
Highly-versatile self-centering wheel adaptors come standard with optional magnetic adaptors to simplify attachment.
Low cost of ownership
Extremely durable and low-maintenance design make Hunter targets a shop favorite..
Multi-axle readings
See live alignment readings from three axles at one time with guided procedures.
Quick rolling compensation
Compensate all wheels and capture initial measurements in one motion.
Trailer alignment
Align using optional kingpin adaptor. Long-range cameras easily see targets on 53 foot trailers or back in configuration.

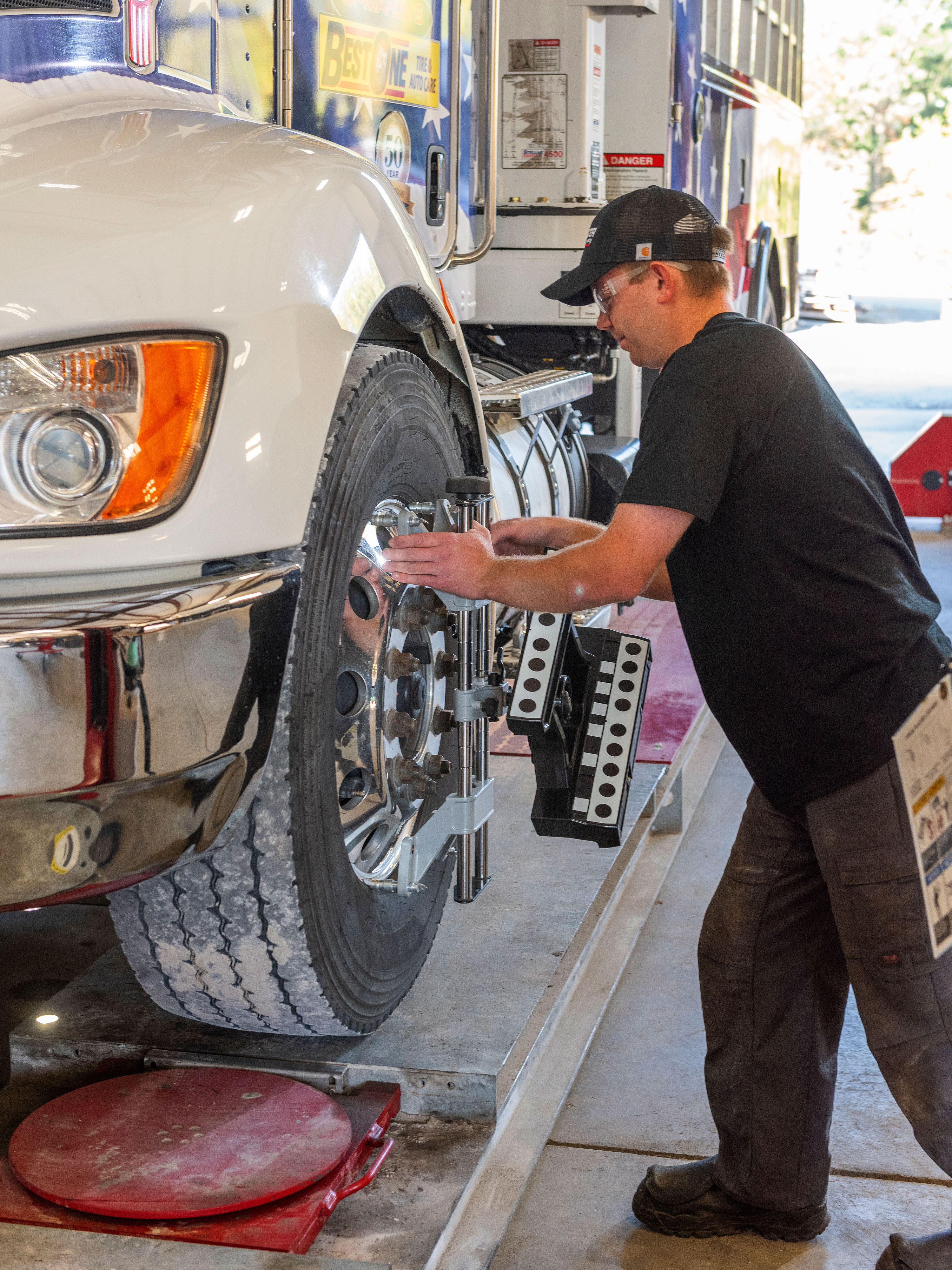

Magnetic wheel adaptors
Quickly and easily secure the target to the wheel through magnetic pins adhering to the lug nuts, minimizing wheel damage risk.
Wide-angle extensions
Extends targets outward for increased visibility when measuring caster and maximum steering angles. Same robust material as XL targets, and no characterization needed.
Optional
Built shop-tough
Durable, lightweight targets attach to each wheel without any electronics.
Calculate your payoff and profits
Invest over the lifetime of your equipment
Hunter Finance™
Powered by GreatAmerica Financial Services
Financing is a great way to lower your upfront cost, and get immediate return on investment. Hunter Financing™ is available in the U.S. and facilitated by GreatAmerica Financial Services.
- Simpler and faster process than a traditional loan
- 25+ years financing the automotive industry
- Knowledgeable about your specific needs
Hunter Credit™
Powered by EasyLease Express™
Leasing is a great option to lower your upfront cost, and get immediate return on investment. Hunter Credit™ is available in Canada through EasyLease Express™.
- Same-day approvals
- Expense your lease payments to lower your taxable income
- Industry-focused with knowledge about your specific needs
Trailers carry the load. Give them the alignment they deserve.
Long-range cameras easily see targets on 53 foot trailers.
Align using optional kingpin adaptor.
NEW back-in trailer alignment ability via latest Hunter software.
Save yourself the trip
Convenient storage available to hang targets and store truck pusher for quick access.
Secondary console provides better visibility and control. Mounts to cart shown.
All-day power from your own connected battery pack lets you go fully cordless.
Three Axles Live
See three axles live with all measurements at once. Reduce setup time through minimal target movement.
ExpressAlign®
Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.
50 Axle Configurations
Select from 50 unique procedures to perform the fastest, easiest, step-by-step alignment process on virtually any vehicle.
WinToe®
Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.
Rear Axle Adjustment
Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try. (Patented)
Automatic Bushing Calculator®
Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's.
Patented
Adjustment Videos
Strengthen technician competency and extend profit opportunities with helpful adjustment videos.
The unsurpassed industry standard software
Step-by-step, vehicle-specific procedures combined with patented power tools ensure precise, first-time alignment on any vehicle from Class 8 trucks to passenger cars.
Take less trips around the truck.
Streamline the alignment process with Fully Integrated Alignment (FIA).
Requires FIA-capable Hunter lift or turnplates
1 trip
To the aligner console
0 jacking axles
Required
81 steps
Total in the process
4 minutes
To get alignment readings
WinAlign® console
Communicates directly with lift to automatically operate turnplates and slip plates.
Lift console
Raising the vehicle triggers the sensors to look for wheel targets.
PowerSlide® system
Slip plates and turnplates automatically lock and unlock at the appropriate times.
Lift up to 35,000-lbs. Align up to 300-in. wheelbase.
Hunter's Heavy-Duty Four-Post semi and truck lift features galvanized runways, turn plate pockets, and slip plates for servicing heavy or standard vehicles. Optional FIA functions connect it to the aligner to streamline the process.
Turn plate options for floor or other racks
Utilize an existing pit
- Permanent installation
- Easily accomodates existing pits, no need for a rack
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in turnplate bridges for rolling compensation
Enhance your rack
- Compatible with Hunter HD alignment pit rack models
- Perform Quick Check®s and alignments more easily
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in bridges for rolling compensation
Great for new construction
- Level profile — reduces tripping hazards
- Provides clean installation and smooth approach
- Adjustable track width — half-ton to Class 8
- 22,000 lbs. (10,000 kg) per axle
- Built-in turnplate bridges for rolling compensation
Ultimate versatility
- Perfect for multiple bays or multiple steer axles (additional sets required)
- Mobile alignment service
- 22,000 lbs. (10,000 kg) per axle
Need help ordering parts?
We are ready to help!
Receive Same-Day or Next-Day Shipping
Parts Built for Quality and Performance
Seamless and Reliable Installation
Unmatched Support, Every Step of the Way

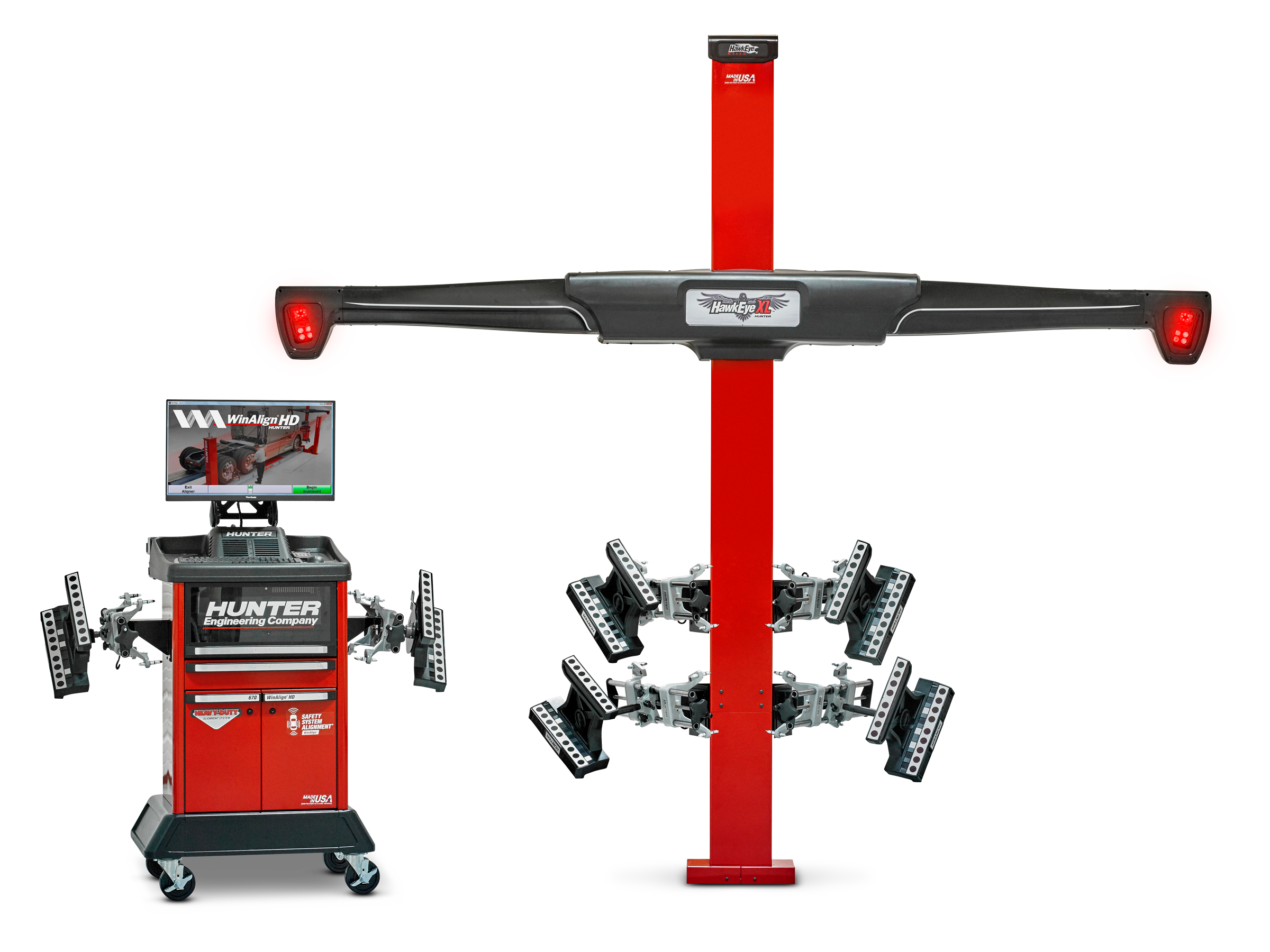

Choose the configuration that fits your shop

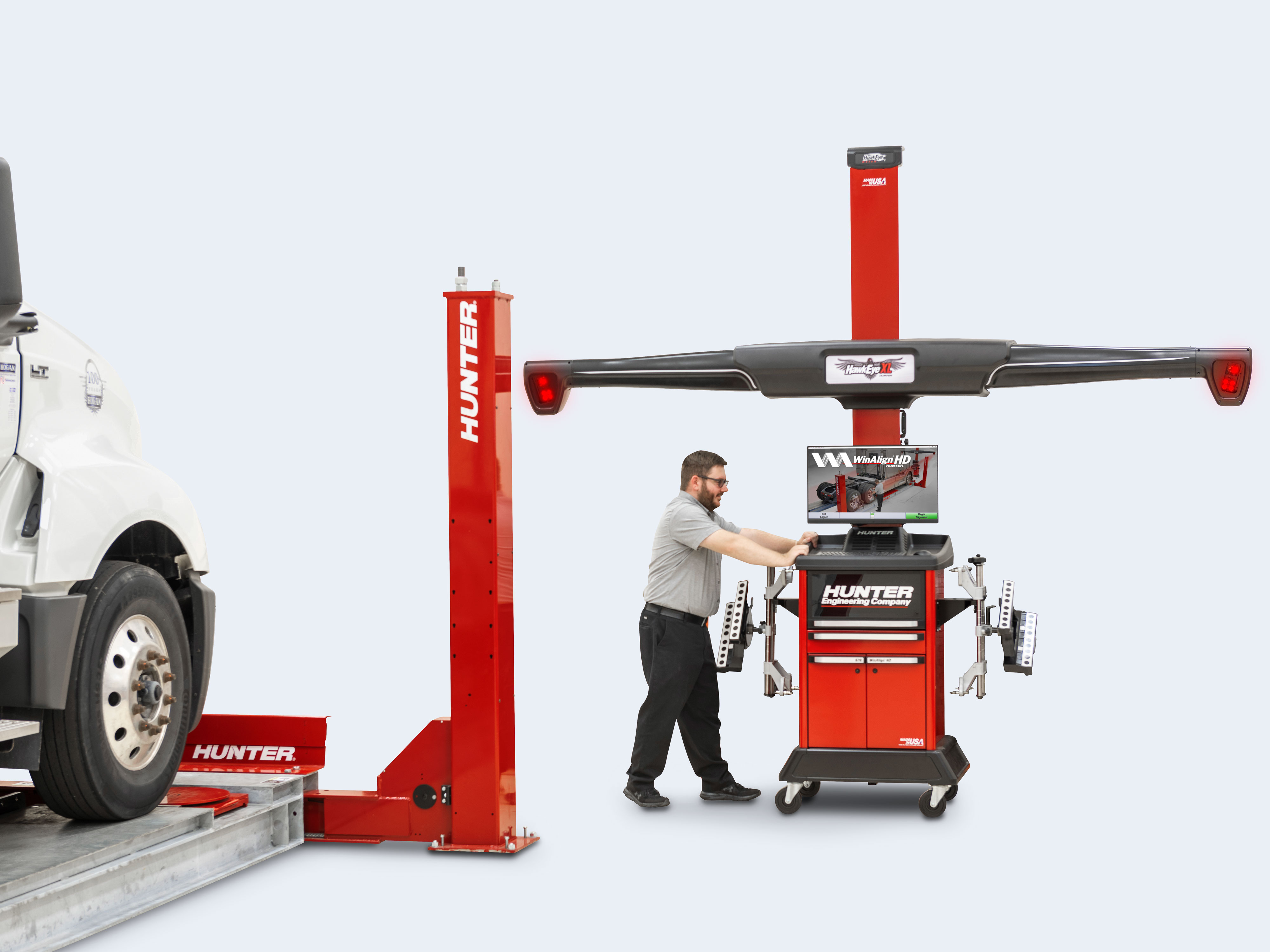

Movable
Cabinet-mounted
Use the aligner in multiple bays with a full range of travel for additional lift height.
Fixed
Fixed column
Suitable for traditional HD pits and challenging or tight bay setups. Moveable console can be placed where needed for easy technician access.
Fixed

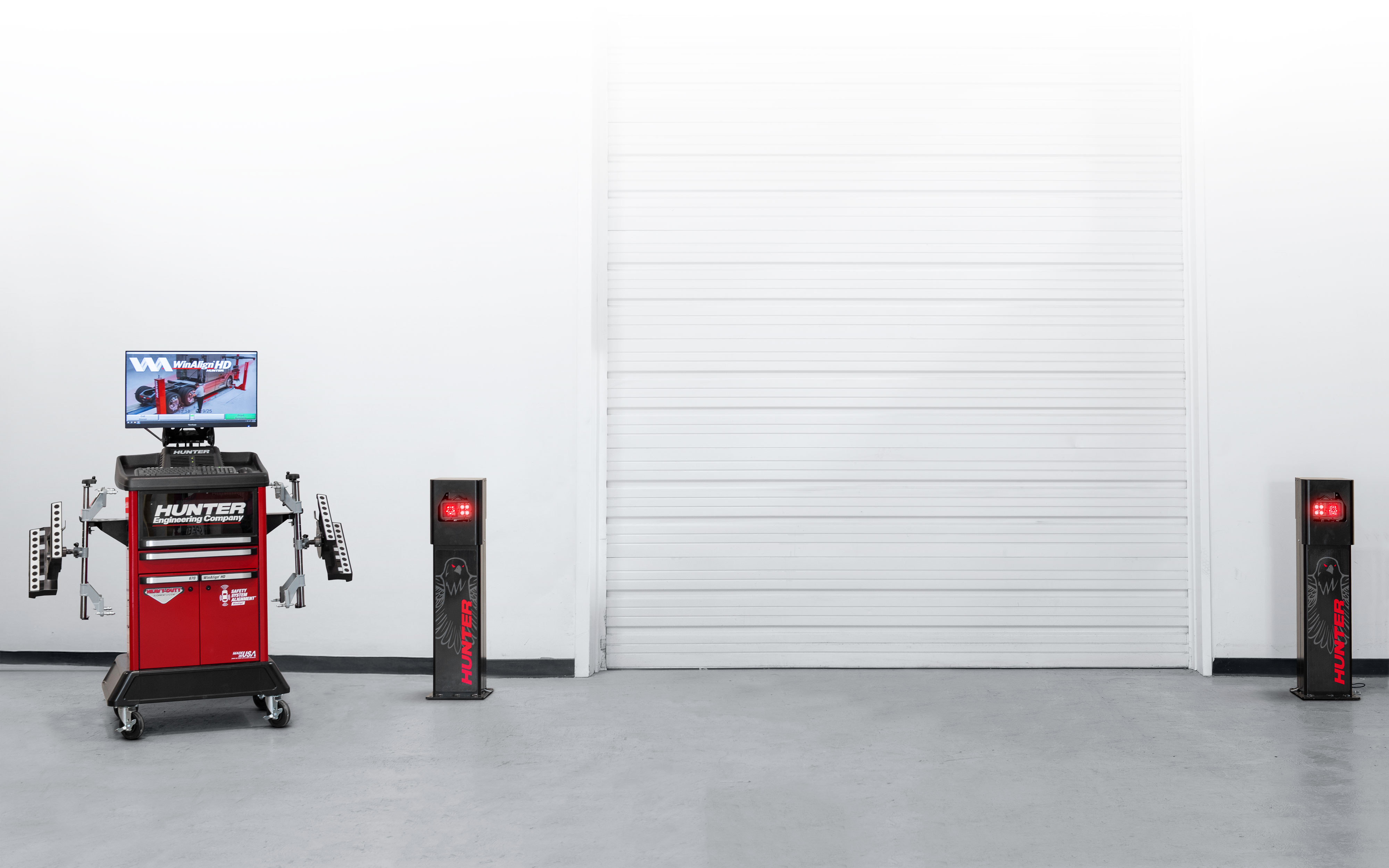

Drive-through
Drive-through sensor configuration offers flexibility with open lanes preventing the need to back out. Floor alignments only.
Other options to expand your capabilities
1
2
3
4
5

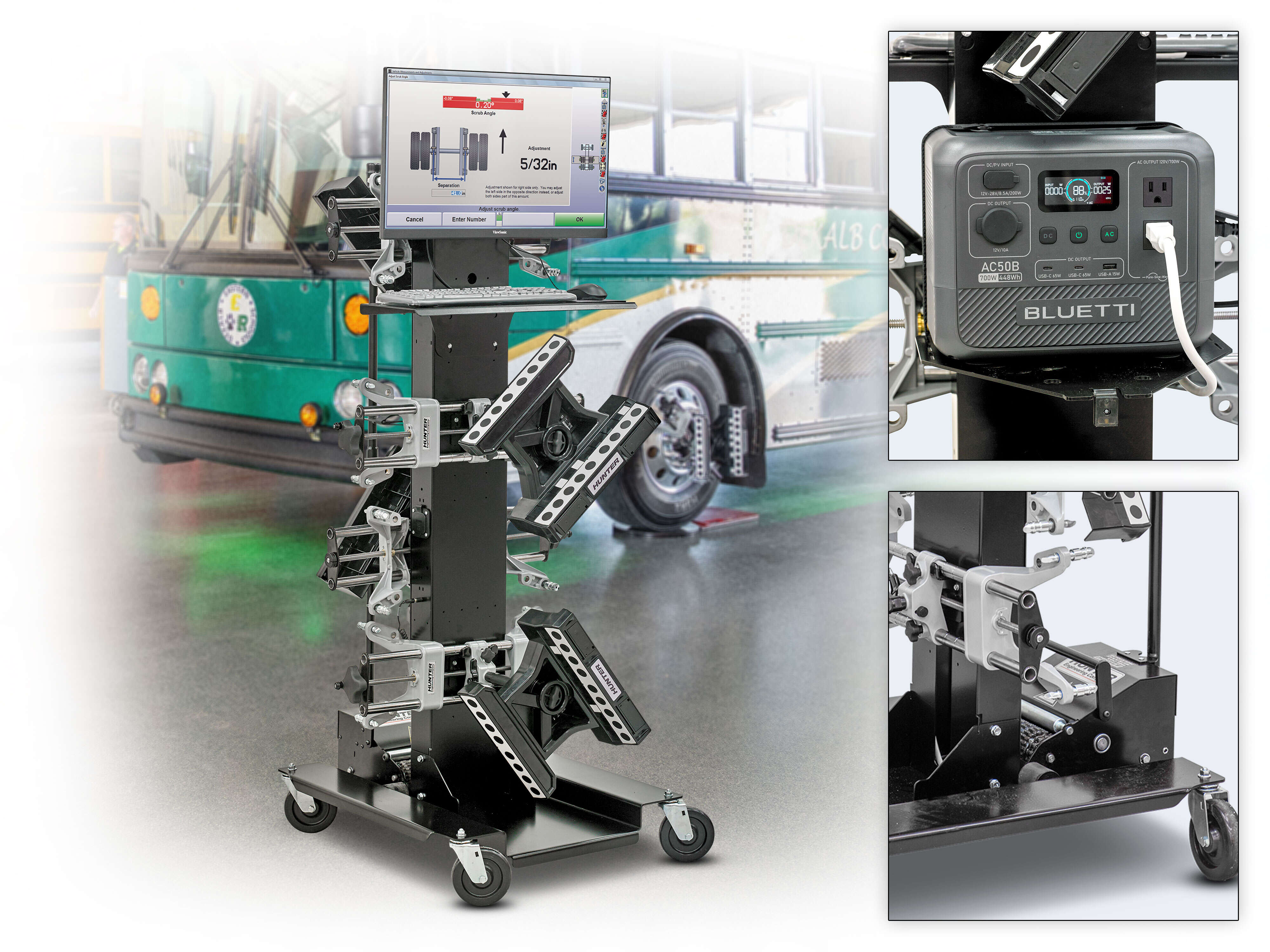

Secondary console and target storage
- Convenient storage - Hang targets and store truck pusher for quick access.
- Secondary console - Provide better visibility and control. Mounts to cart shown.
- All-day power - Connect your own battery power pack to go fully cordless.
Wide-Angle Targets
Easily and accurately measure max steer.
Trailer Gauge
Mounts to the kingpin for trailer alignments.
Remote Indicator
Maintain control while making adjustments.
Mini Self-Centering Clamps
Mount to hub center of front rims. (set of 2)
Scan every vehicle, find every opportunity.
Quick Check® Commercial inspects for camber, total toe, scrub and tire wear on every truck, axle and tire that comes into your shop with no technician required. Keep your equipment producing with a steady stream of high-margin alignments.
Want to see it in action?
Send a message to your local Hunter heavy-duty business consultant to schedule a free on-site demo.
HunterNet® 2 Portal
Equipment intelligence tools help you manage your business and profits in real time.
1
2
3
4
5
6
Recall Alignment Results
View previously serviced vehicles and recall printouts.
Monitor Your ROI
See your equipment payback in real time.
Easy Consumable Ordering
Replenish genuine Hunter consumable parts at your convenience.
View Your Performance
Set goals and see how your business performs day-to-day.
Receive Daily Reports
Setup to receive daily Push Reports to keep your goals and performance in check.
Track Revenue
Track your profits and potential amount if all needed services were sold.
Gallery
Because of continuing technological advances, features and configurations shown in customer photos may vary.
Documents
-
Brochures
-
Specification Sheets
-
Operations Manuals
Receive same- or next-day service
Get a free quote or on-site demo
Register for ASE-accredited training
General information & questions
This contact form is intended for legitimate Hunter equipment and service inquiries. All other use is prohibited and will be discarded. See Full Terms of Use
Hunter's 3-Year Warranty
Hunter Engineering Company warrants new equipment replacement parts for three years and labor for six months.
Proudly designed & built in the USA
From raw steel to finished product. When you choose Hunter, you're investing in more than 1,000 American workers.
